Location
Moscow
Application
Potable water production
Start-up
2012
End-user
Mosvodokanal
Source
Surface water
Capacity
250,000 m3 /d
Construction
WTE Wassertechnik GmbH
BACKGROUND
To ensure a safe and reliable supply of potable water, the City of Moscow added a large-scale drinking water plant almost a decade ago.
With ultrafiltration (UF) technology at its core, the Drinking Water Plant South-West Moscow is the largest UF plant in Europe with a capacity of 250,000 m3 /d.
WATER QUALITY
| WATER QUALITY PARAMETER | UNITS | FEED UF | PERMEATE UF |
| Temperature | °C | 0.2 – 26 | |
| Turbidity | FNU | < 10 | < 0.05 |
| pH | 6.5 - 8.5 | ||
| Total number of organisms | Nr. in 1 ml | 6 log reduction | |
| Coliform bacteria | Nr. in 100 ml | 6 log reduction | |
| Thermo-resistant coliform bacteria | Nr. in 100 ml | 6 log reduction | |
| Clostridium spores | Spores per 20 ml | 6 log reduction | |
| Coliphage | Nr. in 100 ml | 6 log reduction | |
| Viruses | Viruses in 100 ml | 6 log reduction | |
| Giardia lamblia cysts | Nr. in 100 ml | 6 log reduction | |
| Cryptosporidium | Nr. in 100 ml | 6 log reduction |

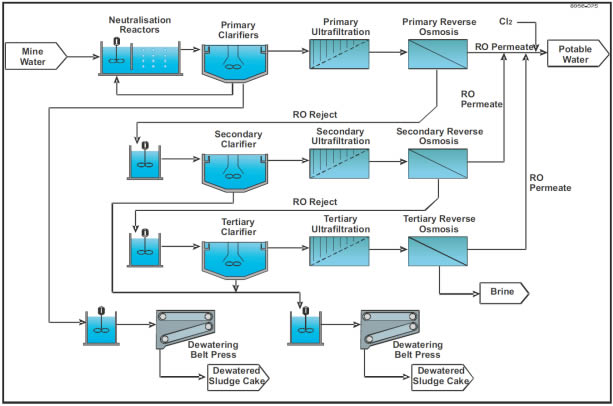

SYSTEM SETUP
SCOPE OF SUPPLY

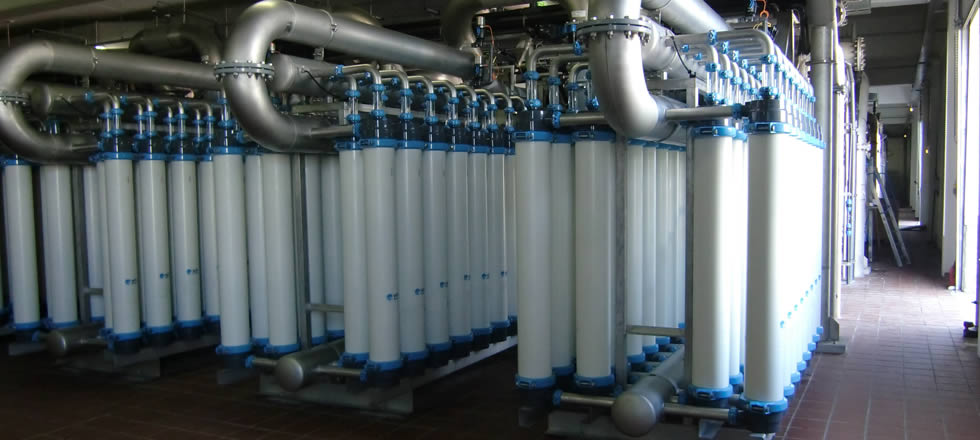

56 skids including 3360 Aquaflex 55 membrane modules
Engineering & commissioning
Automation
Service contract for 5 years
RELATED PRODUCTS
Pentair X-Flow Aquaflex is the ultrafiltration solution for challenging feed water qualities with unmatched operational flexibility.
